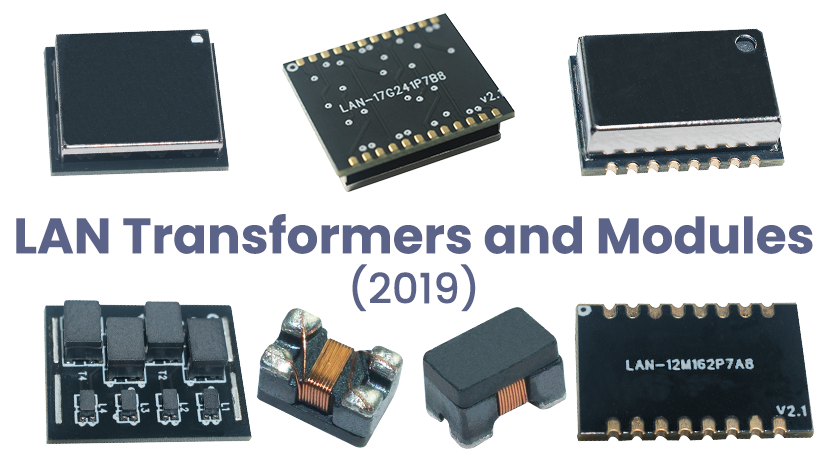

LAN Transformers and Modules (2019)

Filed under:

With a different construction design, our LAN transformers out-performs the traditional toroid design and satisfy the market demand for low height profile components.


Main Features


  • EMI shielding (metal shell)
  • Compliance with IEEE 802.3 ab/u
  • 10BASE-T, 100BASE-TX and 1000BASE-T

New design Vs toroid design:


– Electrical aspect


  • Lower parasitic capacitance
  • Reliable impedance performance
  • Better SRF curve performance

– Mechanical aspect


  • Low height profile
  • No pin co-planarity issue
