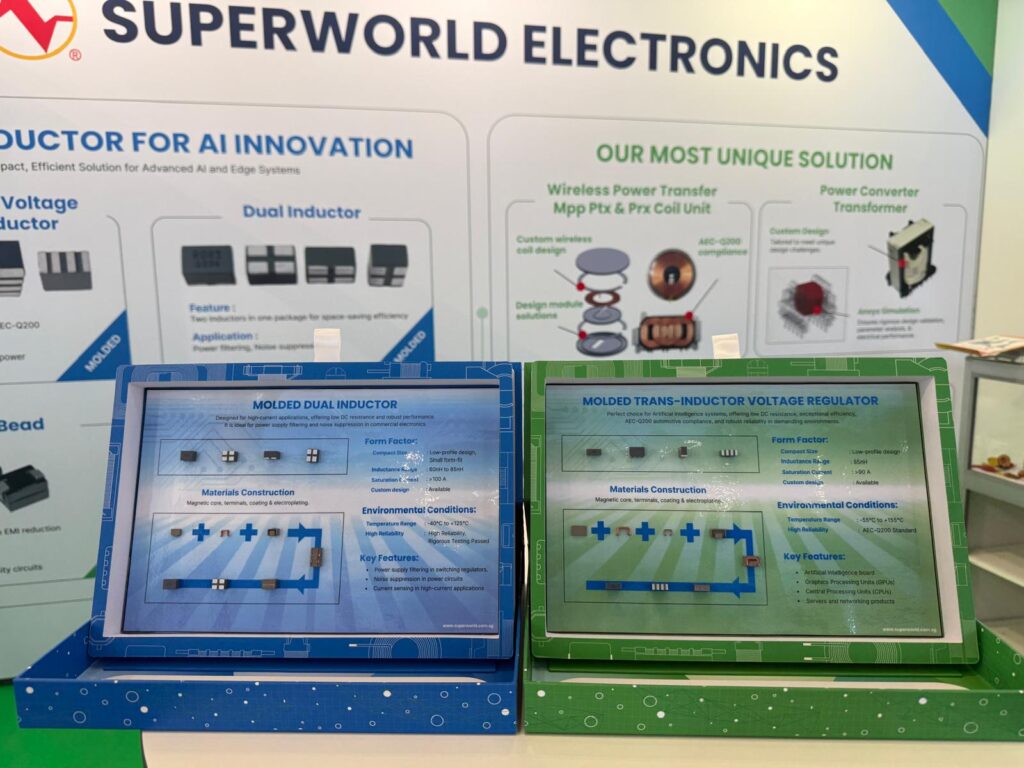

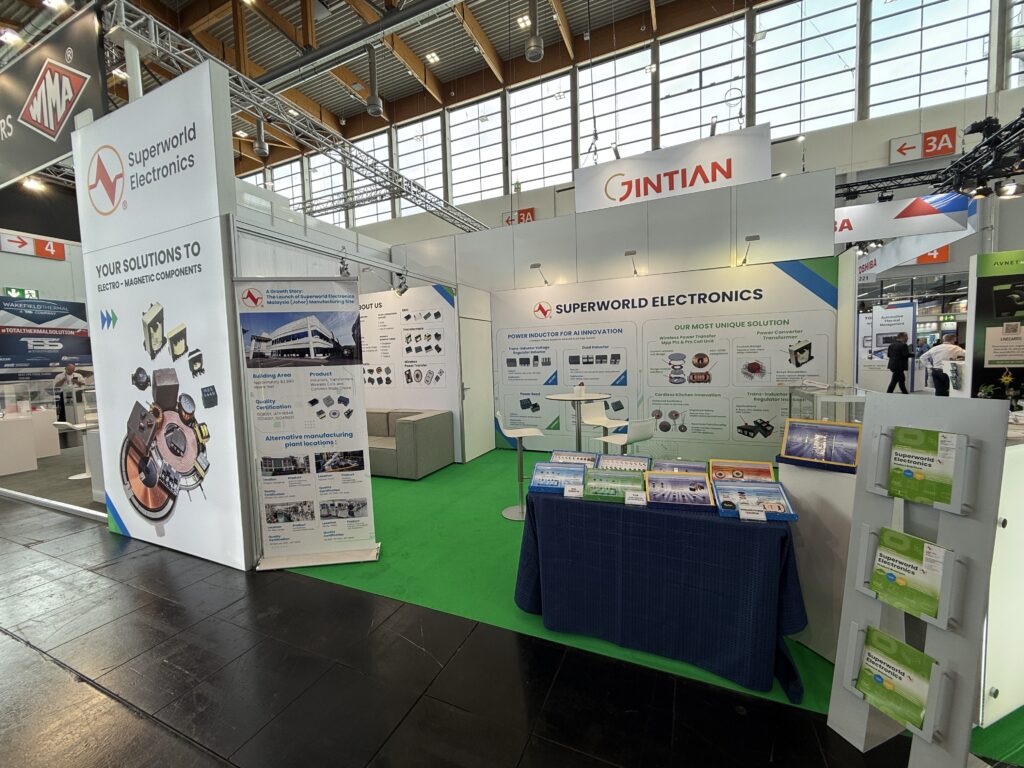

We’re live at PCIM Europe in Nuremberg, the global stage for power‑electronics innovation, and our Booth 4A‑221 is buzzing.
Step in to see hands‑on demos of our molded dual, TLVR and power‑bead inductors—each engineered to slash DCR, reclaim board real‑estate and silence EMI in AI‑server backplanes, high‑current VRMs and 48 V network rails.
Watch real‑time thermal imaging, grab sample kits and chat directly with the engineers behind the design.
Technical Profile :
• single molded package for space efficiency
• Optimized for power filtering and noise suppression
Performance Metrics:
• Inductance: 60 nH (±20%)
• RMS current: up to 74A
• Saturation current: > 100A
• AEC-Q200 qualified
• Operating temperature: -55°C to +155°C
• Fully molded for thermal and electrical durability
• Power supply filtering in switching regulators
• Noise suppression in power circuits
• Current sensing in high-current applications
Molded Trans-inductor Voltage Regulator Inductor
Technical Profile :
• Designed for high-current, low-voltage AI processors
• Uses low-loss core materials and ultra-low DCR
Performance Metrics:
• Inductance: 85 nH (±20%)
• RMS current: up to 35A
• Saturation current: > 90A
• AEC-Q200 qualified
• Operating temperature: -55°C to +155°C
• Fully molded for thermal and electrical durability
• Available
• Artificial intelligence board
• Graphics Processing Units
• Central Processing Units (CPUs)
• Servers and networking products
Technical Profile :
• Ceramic‑core, ultra‑low DCR
Performance Metrics:
• RMS current: ≤ 140 A (Isat 160 A @ 25 °C)
• Saturation current: 40–70 A (ΔT 40 °C)
• Storage –10 °C to +40 °C, < 70 % RH
• Pb‑free reflow qualified (≤ 260 °C, 3 cycles, J‑STD‑020E)
• Server / telecom point‑of‑load regulators
• 48 V → 12 V automotive DC‑DC stages
Technical Profile :
• Carbonyl core with flat wire for low DCR
Performance Metrics:
• Saturation current: up to 58A
• Maximum DCR: 0.35 mΩ
• High thermal and electrical
• stability in compact form factor
• Memory, I/O, and interface subsystems
• Power stability in high-frequency AI Processing
Why These Inductors Matter for AI
• Molded Dual Inductor :
• Combines two inductors in one molded body, saving PCB space on AI boards.
High current handling
• Trans-inductor Voltage Regulator Inductor :
• Delivers up to 140A RMS, supporting heavy loads in GPU, CPU, and AI accelerator VRMs.
Low DCR, high efficiency
• Molded Trans-inductor Voltage • Regulator Inductor:
• Uses ultra-low DCR materials to minimize energy loss in high-current AI processors.
EMI suppression:
• Power Bead :
• Provides magnetic shielding to reduce electromagnetic interference in AI signal paths.
Thermal durability
• Molded Trans-inductor & Power Bead :
• Wide temperature range (up to +155°C) ensures stable performance in extreme AI environments.
Custom design flexibility
• All products (Dual Inductor, Trans-inductor, Power Bead) : Allows engineers to fine-tune inductance and current specs for specific AI applications.
